Super Jobber

SUPER JOBBER

Advanced Machine Features

The SUPER JOBBER from Ace Designers is built for powerful and reliable CNC turning performance.

Powerful AC Spindle motor
High speed 3500 rpm spindle
Thermally stabilised spindle
Hardened and ground box type
20 m/min rapid traverse rate
Pre-tension ball screw support
0.45 sec. turret Index time
100% ball bar tested
Separate coolant tank-easy maintenance

⚙

Standard Accessories

AC spindle & axes drives, Hardened and ground box guideways, Heavy duty bi-directional turret, Tailstock with live center, Automatic centralized oil lubrication, Hydraulic power operated chuck (Ø200 mm), AC unit for electricals.

🏭

Optional Accessories

Hydraulic power operated Chuck (Ø250 mm), Voltage stabilizer - 25 kVA, Chip conveyor rear/side, TPM - Trak productivity monitoring system, LASER calibrated axes.

✔

Capacity

Swing Over Bed: 500 mm, Distance Between Centers: 425/(550)mm, Maximum Turning Dia: 350 mm, Maximum Turning Length: 400(500)* mm.

🛠

Spindle Specs

Spindle Nose: A2-6, Bore Through Spindle: 63mm, Front Bearing Bore: 100mm, Maximum Bar Capacity: 51*mm, Maximum Spindle speed: 3500 rpm.

Technical Specifications

Detailed capacity, spindle, tooling, and dimensional specifications for the Super Jobber.

Category	Specification	Details
Capacity	Control System	Fanuc/Siemens
	Swing Over Bed	500 mm
	Distance Between Centers	425/(550)mm
	Maximum Turning Dia	350 mm
	Between Centre Turning Dia	260 mm
	Maximum Turning Length	400(500)* mm
Spindle	Standard Chuck Size	200 mm
	Spindle Nose	A2-6
	Bore Through Spindle	63mm
	Front Bearing Bore	100mm
	Maximum Bar Capacity	51*mm
	Maximum Spindle speed	3500 rpm
	Spindle Motor Power (15/30 min)	Fanuc - 11 kW / Siemens - 10.8 kW
	Spindle Motor Power (Siemens S6 - 40%)	Siemens - 13.8kW
	Spindle Motor Power (Continuous Rating)	Fanuc - 7.5/ Siemens - 9 kW
	Full Power Range	Fanuc 1166 - 2625 rpm \| Siemens 875- 2500 rpm
Axes	Type of Guideways	Hardened & Ground Box type steel
	X-Axis Stroke	165 mm
	Z-Axis Stroke	400(500) mm
	X & Z Axes Rapid Rate	20 m/min.
Tooling	Number of Tools Maximum	8
	Boring Bar Dia Maximum	40 mm
	OD Turning Tool Size	25 x 25 mm
Tailstock	Base Travel	235 (410) mm
	Quill Travel	100 mm
	Quill Dia.	80 mm
	Quill Taper	MT-4
Hydraulic & Coolant	Hydraulic Pump Capacity	14 lpm
	Hydraulic Power Pack Tank	45 litre
	System Pressure	30 Kg/cm²
	Coolant Tank Capacity	110 litre
Dimensions & Weight	Overall Dimensions (L x W x H)	2250 x 1750 x 1770 mm (2400x1750x1700)
Dimensions & Weight	Overall Weight (w/o packing)	~ 3750kg

SUPER JOBBER

Advanced Machine Features

Standard Accessories

Optional Accessories

Capacity

Spindle Specs

Technical Specifications

Technical Diagrams

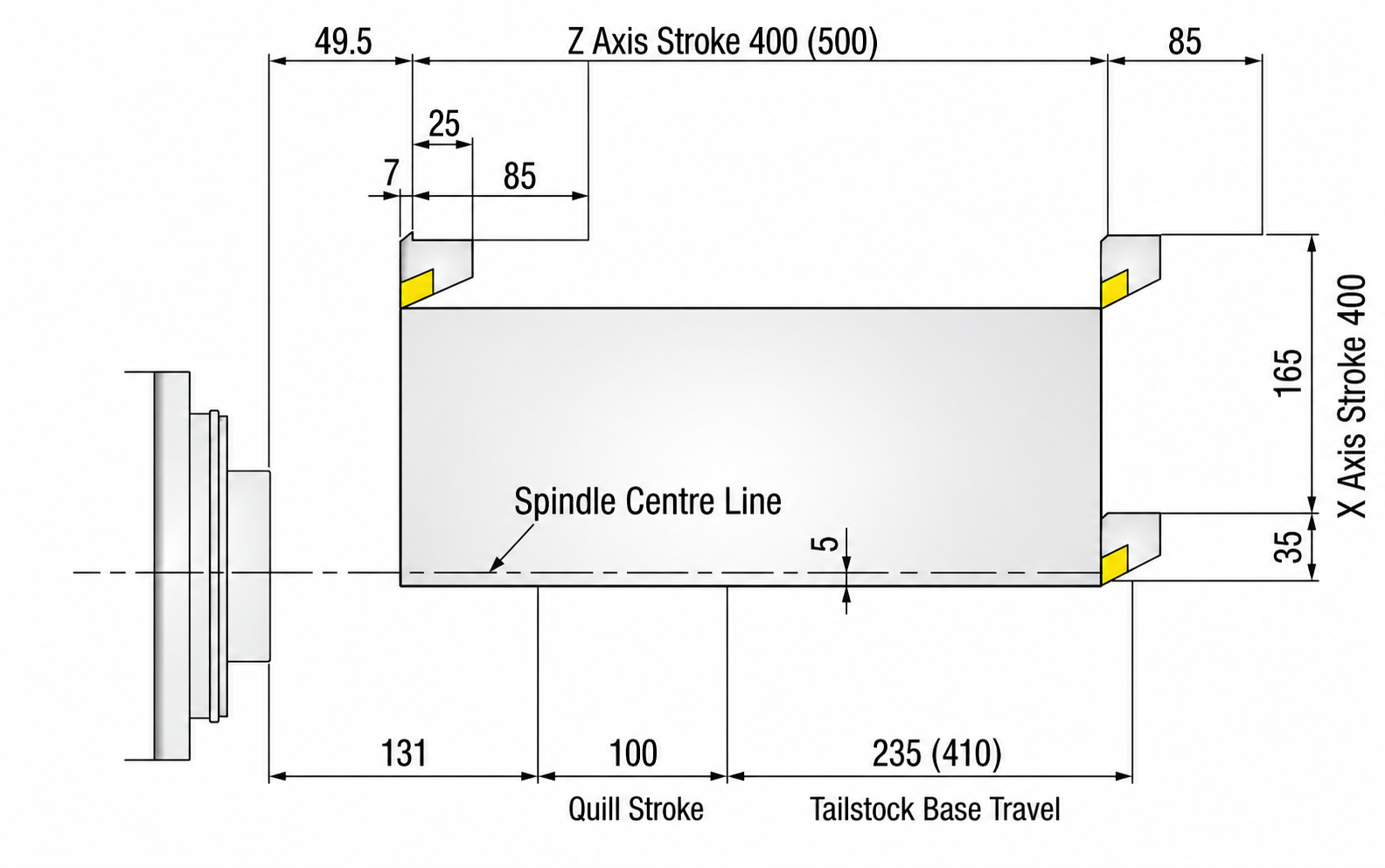

Machining Range Diagram

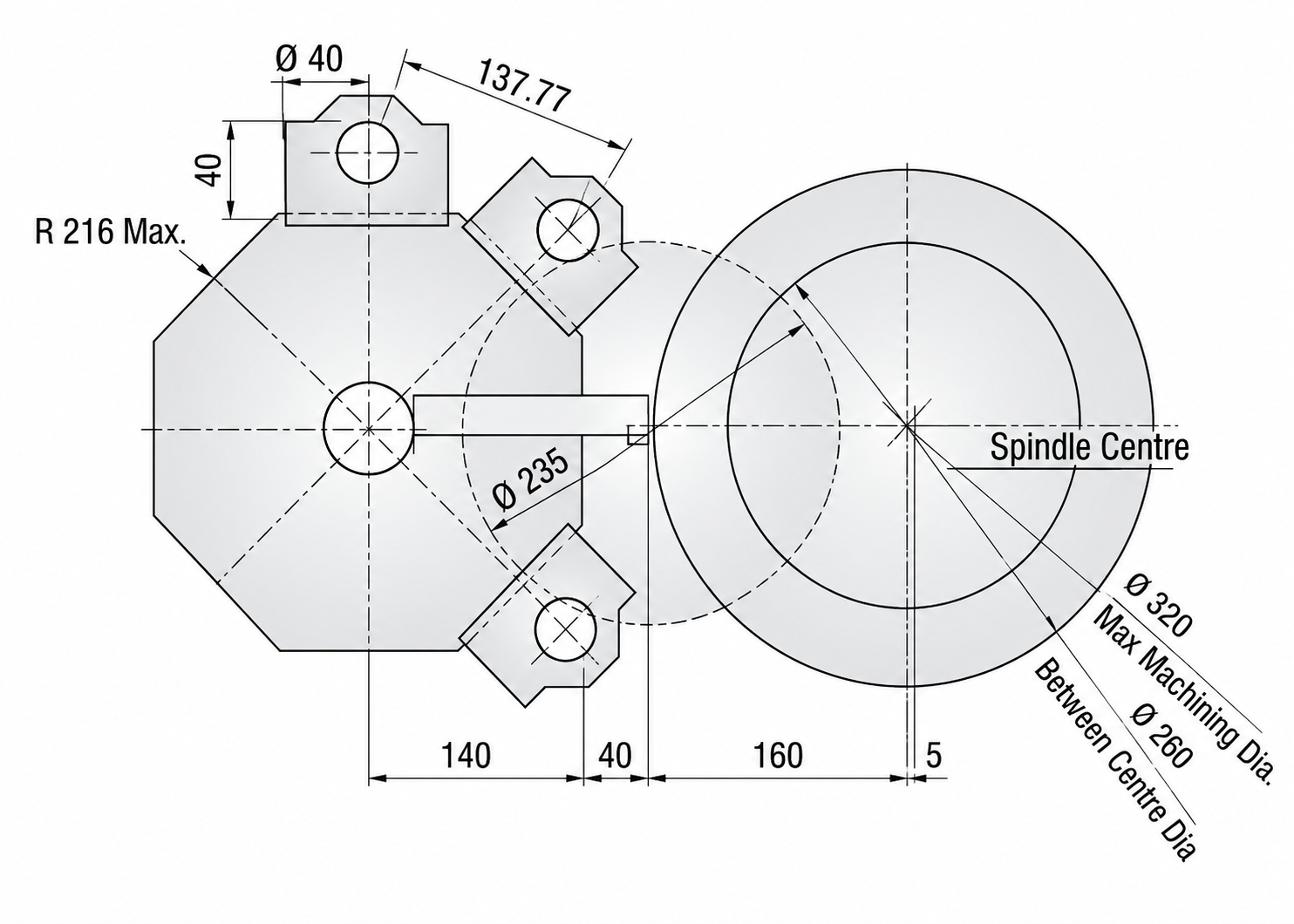

Interference Diagram

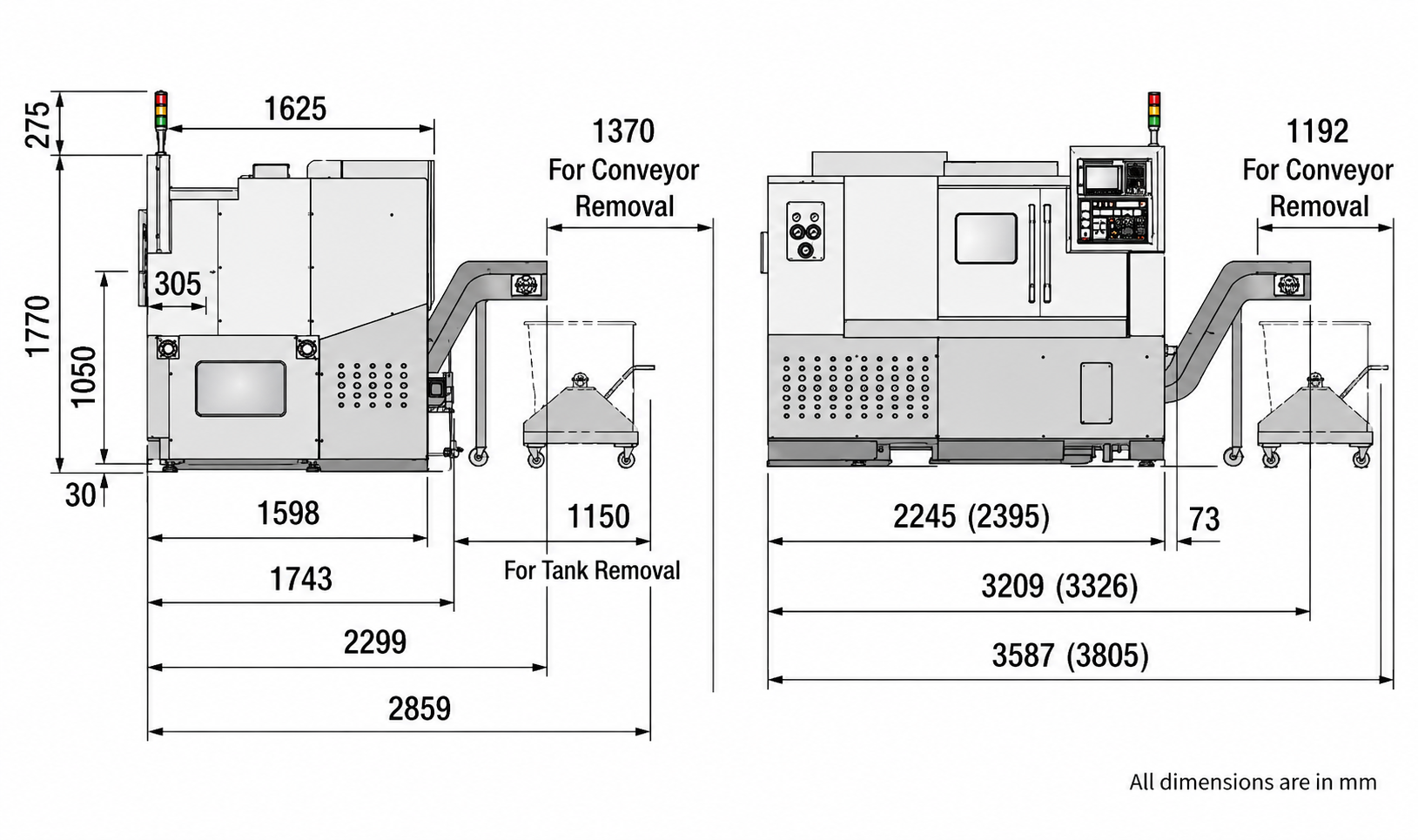

Overall Views
