Advanced Machine Features
The SJE 10 LM/XL from Ace Designers delivers powerful performance with a step up Z-axis structure and high speed 3500 rpm spindle.

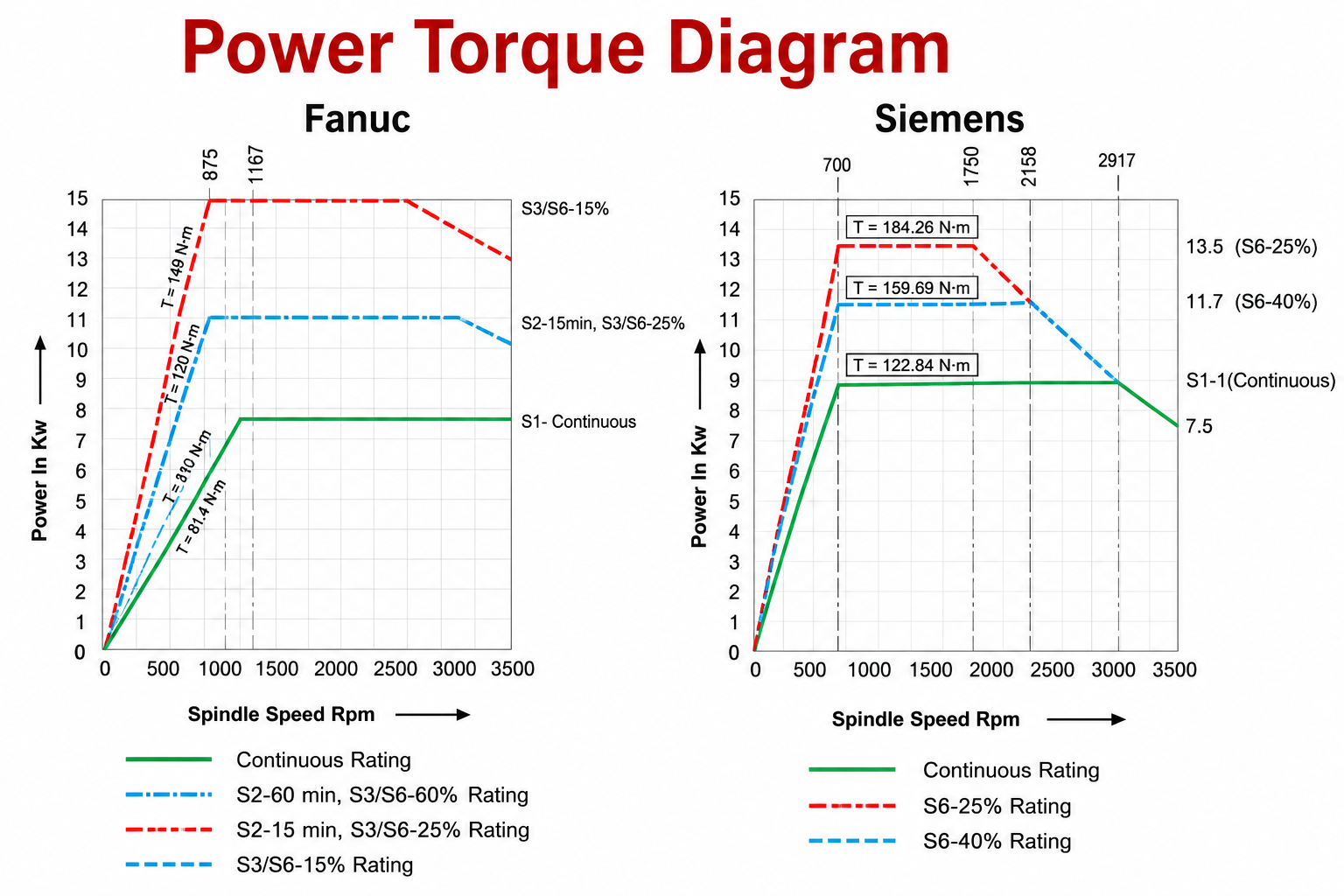

- Powerful AC Spindle motor
- Thermally stabilised spindle
- Pre-tensioned ball screw support

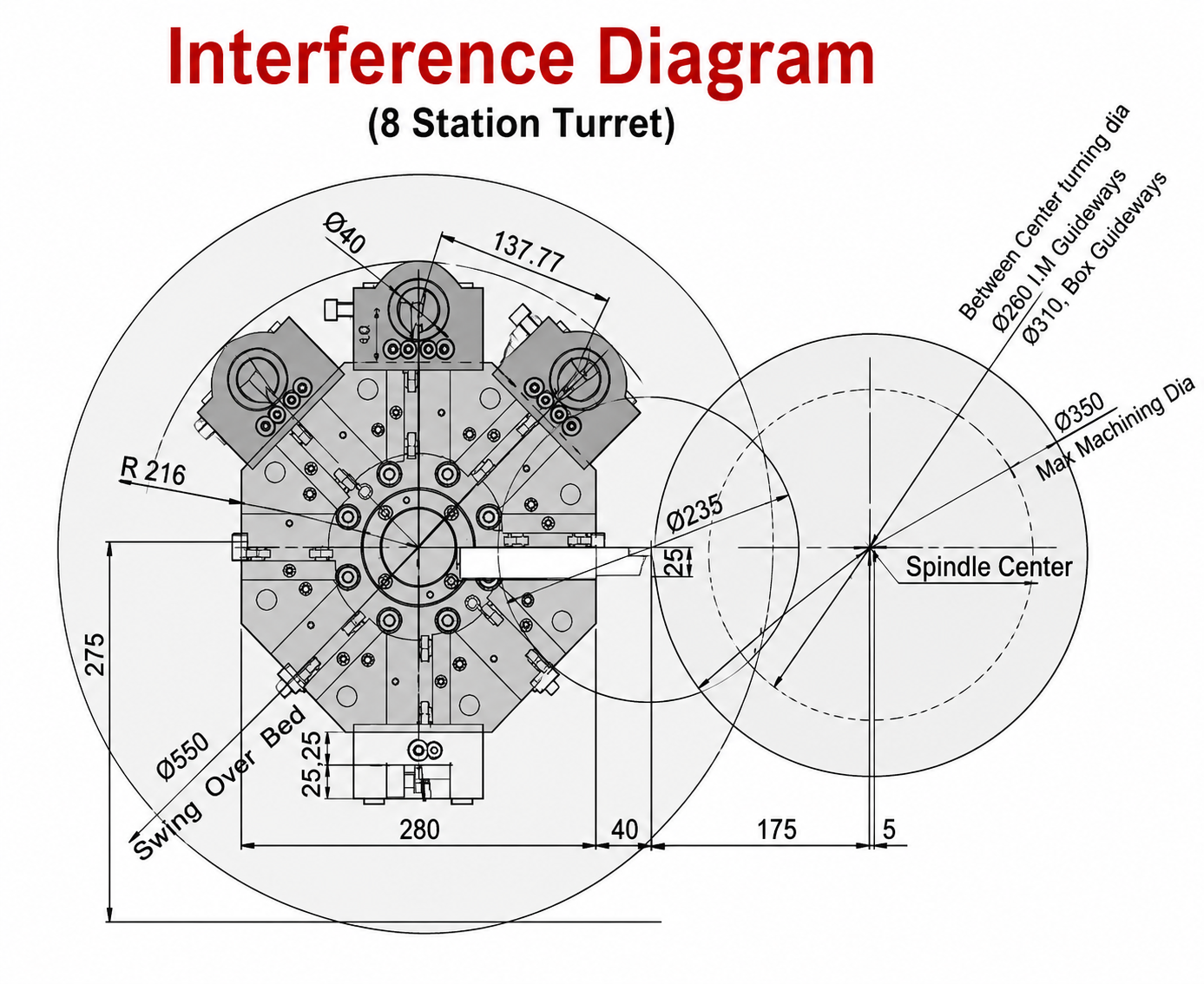

- Heavy duty bi-directional hydraulic turret (8 station)
- 0.45 sec. station-to-station Turret Indexing time
- 100% ball bar tested
- Separate coolant tank for easy maintenance
LM - Linear motion guideways | XL - Hardened & ground box guideways
Standard Accessories
AC spindle motor & axes drives, Precision guideways on both axes, Tailstock with live center, Automatic centralized oil lubrication, Hydraulic power operated chuck (Ø200 mm), AC unit for electrical cabinet.
Optional Accessories
Hydraulic power operated Chuck (Ø250 mm), Voltage stabilizer - 25 kVA, Chip conveyor rear/side mount, TPM - Trak productivity monitoring system, Auto door, 12 station turret.

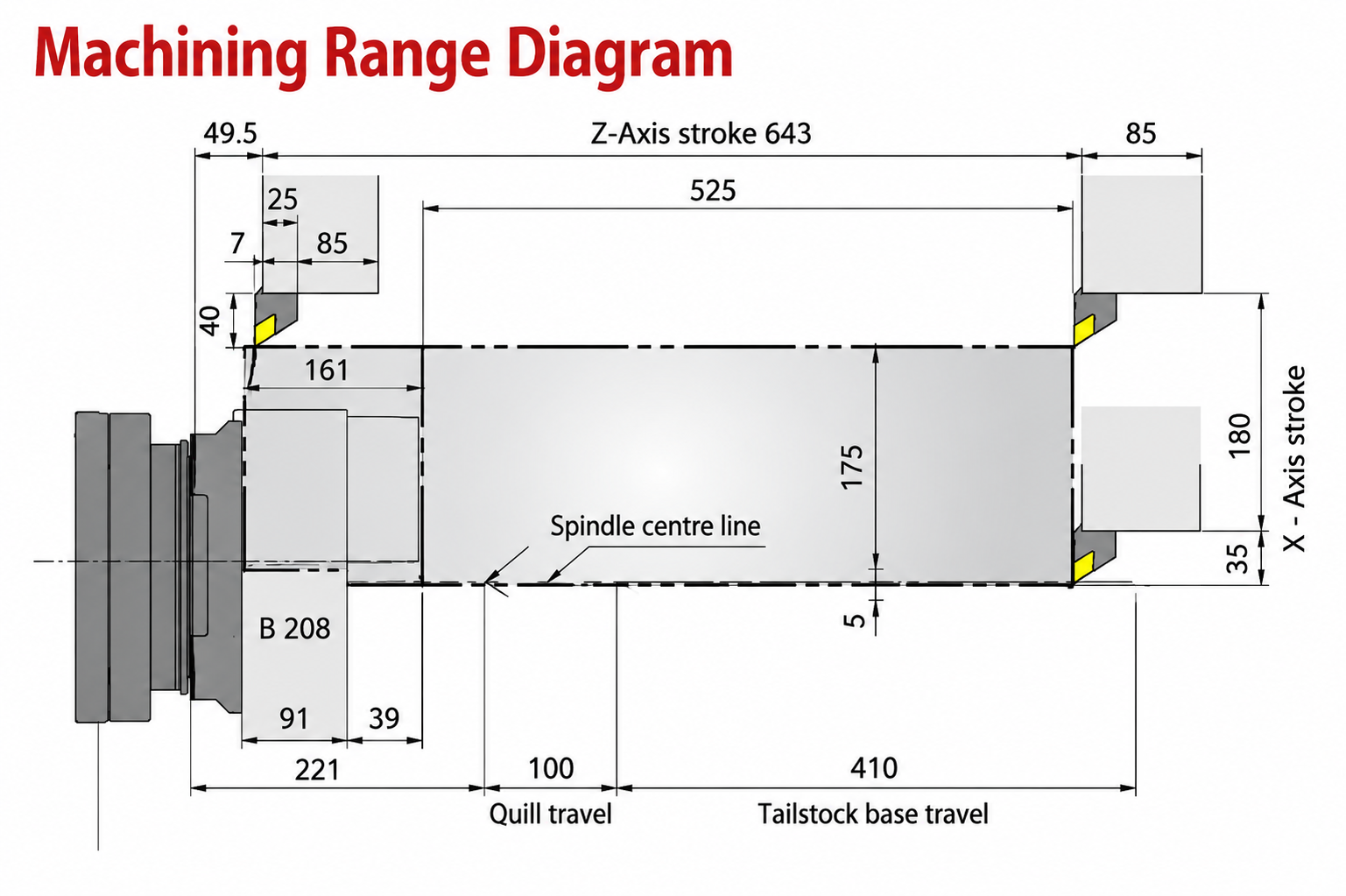

Capacity
Swing Over Bed: 550 mm, Distance Between Centers: 615 mm, Maximum Turning Dia: 350 mm, Maximum Turning Length: 643 mm.
Spindle Specs
Spindle Nose: A2-6, Bore Through Spindle: 63 mm, Front Bearing Bore: 100 mm, Maximum Bar Capacity: 51 mm, Maximum Spindle speed: 3500 rpm.
